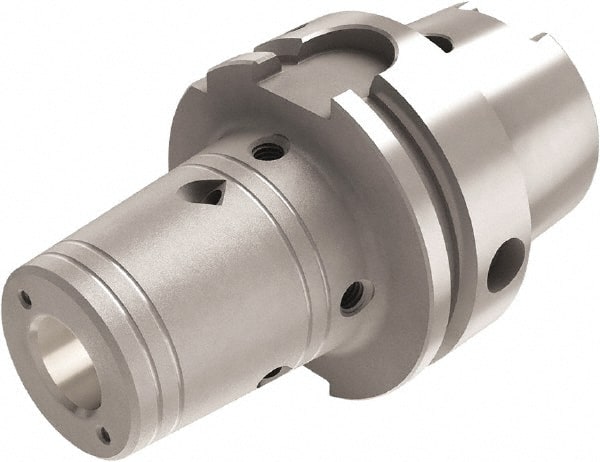

Seco - 12mm Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 70mm Projection, 27mm Nose Diam, 46mm Clamping Depth, 40,000 RPM, Through Coolant
Item #: 81024580
Brand: Seco
Model #: 84216
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.4724 |
| Hole Diameter (mm) | 12.00 |
| Projection (mm) | 70.00 |
| Projection (Decimal Inch) | 2.7559 |
| Nose Diameter (mm) | 27.00 |
| Nose Diameter (Decimal Inch) | 1.0630 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 46.00 |
| Clamping Depth (Decimal Inch) | 1.8110 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Balanced to (RPM) | 40000 |
