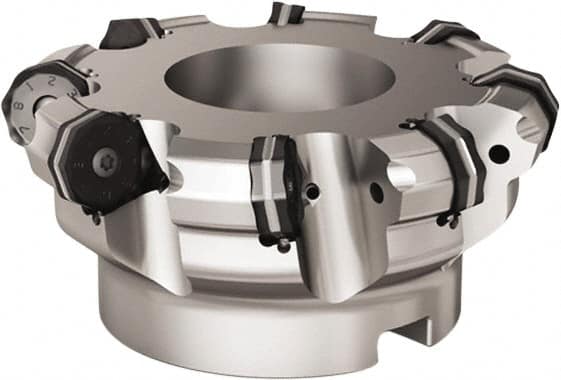

Seco - 6 Inserts, 3.5394" Cutter Diam, 0.0787" Max Depth of Cut, Indexable High-Feed Face Mill - 1.063" Arbor Hole Diam, 0.4882" Keyway Width, 1.9685" High, R220.21 Toolholder, ON.. 09.. Inserts
Item #: 81029738
Brand: Seco
Model #: 79002
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.5394 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (Decimal Inch) | 1.9685 |
| Cutter Style | R220.21 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | ON.. 09.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 4400 |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 3.1496 |
| Through Coolant | No |
| Complete Insert Compatibility | ONEU 090520ZZTN4-M14; ONMU 090520ANTN-M12; ONMU 090520ANTN-M13; ONMU 090520ANTN-M14; ONMU 090520ANTN-M15; ONMU 090520ANTN-MD16; ONMU 090520ANTN-MD17; ONMU 090520ANTN-ME12; ONMU 090520ANTN-ME13 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Manufacturers Catalog Number | R220.21-0080-ON09-6A |
