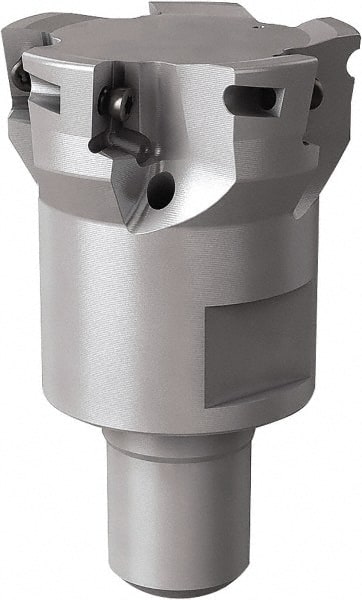

Seco - 40mm Cut Diam, 6mm Max Depth of Cut, Indexable Plunge End Mill - M16 Modular Connection, Multiple Insert Styles, R217.79 Toolholder Style, Through Coolant, Series Turbo 10
Item #: 81039133
Brand: Seco
Model #: 85699
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.0 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Insert Style | XOEX 10T304R-M06; XOEX 10T308R-M06; XOEX 10T312R-M06; XOEX 10T316R-M06; XOEX 10T320R-M06; XOEX 10T324R-M06; XOEX 10T331R-M06 |
| Toolholder Style | R217.79 |
| Series | Turbo 10 |
| Number of Flutes | 5 |
| Overall Length/Projection (Decimal Inch) | 1.5748 |
| Overall Length Projection (mm) | 40.0 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Through Coolant | Through Coolant |
| Maximum RPM | 150000 |
| ISO Number | R217.79-1640.RE-10-5A |
| Rake | Positive |
