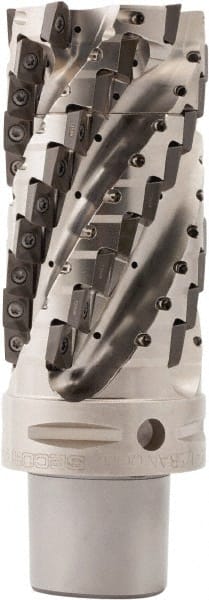

Seco - 80mm Cut Diam, 93mm Max Depth of Cut, Indexable Square Shoulder End Mill - Multiple Insert Styles, C8 Modular Connection, 90° Lead Angle
Item #: 81040974
Brand: Seco
Model #: 79431
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Shank Type | Modular Connection |
| Modular Connection Size | C8 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 93.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.6614 |
| Number of Cutter Inserts | 30 |
| Insert Holding Method | Screw |
| Cutter Style | R217.69 |
| Number of Flutes | 5 |
| Weldon Flat | No |
| Insert Compatibility | XOEX 180604FR-E10; XOEX 180608FR-E10; XOEX 180608ZZR-M10; XOEX 180616FR-E10; XOEX 180616ZZR-M10; XOEX 180620FR-E10; XOEX 180631FR-E10; XOMX 180604R-M10; XOMX 180604TR-ME13; XOMX 180608R-M10; XOMX 180608TR-D16; XOMX 180608TR-M14; XOMX 180608TR-MD15; XOMX 1 |
| Maximum RPM | 7000 |
