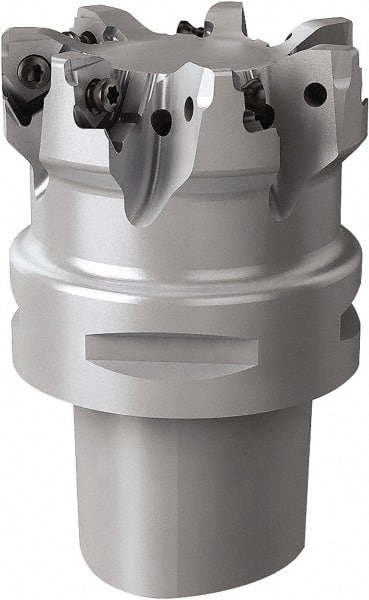

Seco - 66mm Cut Diam, 7.5mm Max Depth of Cut, 60mm OAL, Indexable Square Shoulder End Mill - C6 Modular Connection, 90° Lead Angle, Series Square 6
Item #: 81040990
Brand: Seco
Model #: 09754
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 66.00 |
| Cutting Diameter (Decimal Inch) | 2.5984 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Overall Length/Projection (mm) | 60.00 |
| Overall Length/Projection (Decimal Inch) | 2.3622 |
| Lead Angle | 90 |
| Series | Square 6 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | R217.96 |
| Number of Flutes | 7 |
| Weldon Flat | No |
