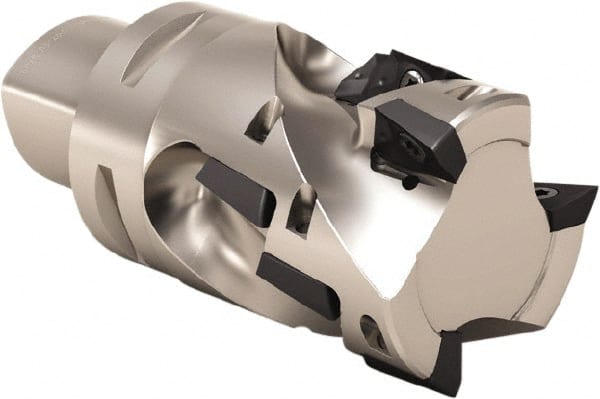

Seco - 50mm Cut Diam, 86mm Max Depth of Cut, 157mm OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, C6 Modular Connection, 90° Lead Angle
Item #: 81041089
Brand: Seco
Model #: 79419
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Overall Length/Projection (mm) | 157.00 |
| Overall Length/Projection (Decimal Inch) | 6.1811 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 86.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.3858 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | R217.69 |
| Number of Flutes | 5 |
| Weldon Flat | No |
| Insert Compatibility | XOEX 120402R-M07; XOEX 120404FR-E06; XOEX 120404R-M07; XOEX 120408FR-E06; XOEX 120408R-M07; XOEX 120408ZZR-M07; XOEX 120416FR-E06; XOEX 120416R-M07; XOEX 120420FR-E06; XOEX 120424FR-E06; XOEX 120424R-M07; XOEX 120431FR-E06; XOEX 120431R-M07; XOEX 120440R- |
| Maximum RPM | 14800 |
