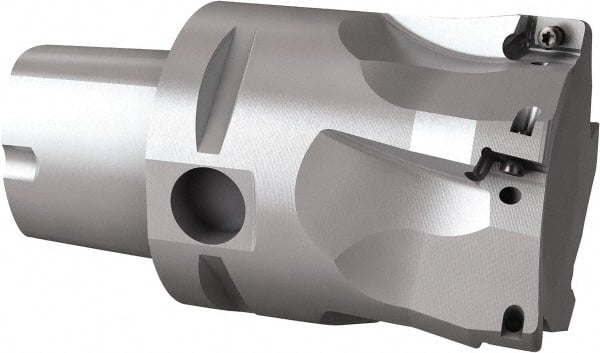

Seco - 54mm Cut Diam, 9mm Max Depth of Cut, 60mm OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, C5 Modular Connection, 90° Lead Angle, Through Coolant, Series Turbo 10
Item #: 81041162
Brand: Seco
Model #: 77540
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 54.00 |
| Cutting Diameter (Decimal Inch) | 2.1260 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Overall Length/Projection (mm) | 60.00 |
| Overall Length/Projection (Decimal Inch) | 2.3622 |
| Lead Angle | 90 |
| Series | Turbo 10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | R217.69 |
| Number of Flutes | 5 |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3622 |
| Weldon Flat | No |
| Insert Compatibility | XOEX 10T304FR-E05; XOEX 10T308FR-E05; XOEX 10T312FR-E05; XOEX 10T316FR-E05; XOEX 10T320FR-E05; XOMX 10T304TR-M09; XOMX 10T304TR-ME07; XOMX 10T308TR-M09; XOMX 10T308TR-ME07; XOMX 10T312TR-M09; XOMX 10T312TR-ME07; XOMX 10T316TR-M09; XOMX 10T316TR-ME07; XOMX |
| Maximum RPM | 14200 |
