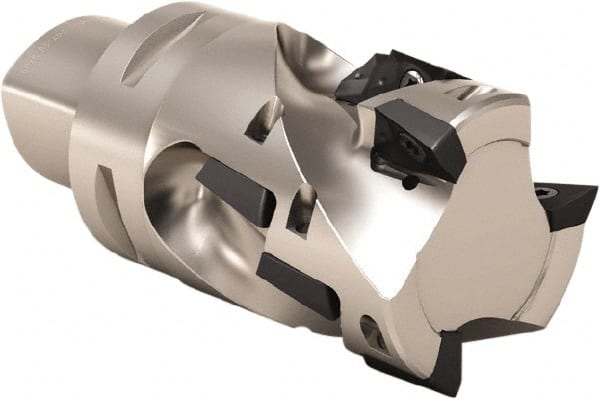

Seco - 40mm Cut Diam, 65.5mm Max Depth of Cut, 141mm OAL, Indexable Square Shoulder Helical End Mill - C6 Modular Connection, 90° Lead Angle, Series Turbo
Item #: 81041170
Brand: Seco
Model #: 79414
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Overall Length/Projection (mm) | 141.00 |
| Overall Length/Projection (Decimal Inch) | 5.5512 |
| Lead Angle | 90 |
| Series | Turbo |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 65.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.5787 |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | R217.69 |
| Number of Flutes | 3 |
| Head Length (mm) | 103.00 |
| Head Length (Decimal Inch) | 4.0551 |
| Weldon Flat | No |
| Maximum RPM | 16400 |
