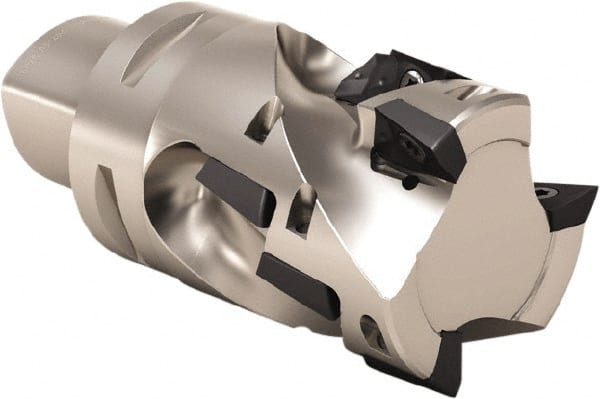

Seco - 32mm Cut Diam, 55mm Max Depth of Cut, 120mm OAL, Indexable Square Shoulder Helical End Mill - C5 Modular Connection, 90° Lead Angle, Series Turbo
Item #: 81041196
Brand: Seco
Model #: 79413
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Overall Length/Projection (mm) | 120.00 |
| Overall Length/Projection (Decimal Inch) | 4.7244 |
| Lead Angle | 90 |
| Series | Turbo |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 55.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.1654 |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | R217.69 |
| Number of Flutes | 3 |
| Head Length (mm) | 90.00 |
| Head Length (Decimal Inch) | 3.5433 |
| Weldon Flat | No |
| Maximum RPM | 18400 |
