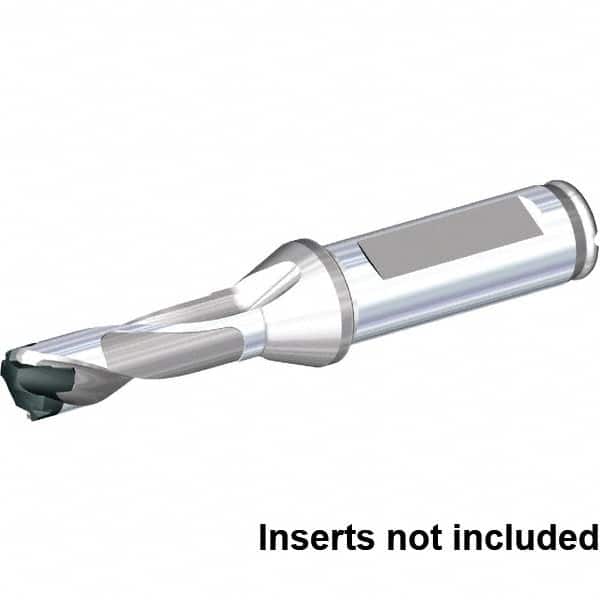

Kennametal - Series KenTIP, Head Connection O, 5xD, 5/8" Shank Diam, Drill Body - 88.9mm Drill Body Length to Flange, KTIP Toolholder, 12.7mm Nose Diam, 136.9mm OAL, 88.9mm Drill Body Length, 83.4mm Flute Length, Through Coolant
Item #: 81065971
Brand: Kennametal
Model #: 5307709
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Head Connection Size | O |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Drill Body Length to Flange (mm) | 88.90 |
| Drill Body Length to Flange (Decimal Inch) | 3.5000 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 12.70 |
| Nose Diameter (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 136.90 |
| Overall Length (Decimal Inch) | 5.3898 |
| Gage Length (mm) | 88.90 |
| Gage Length (Decimal Inch) | 3.5000 |
| Flute Length (mm) | 83.40 |
| Flute Length (Decimal Inch) | 3.2835 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
