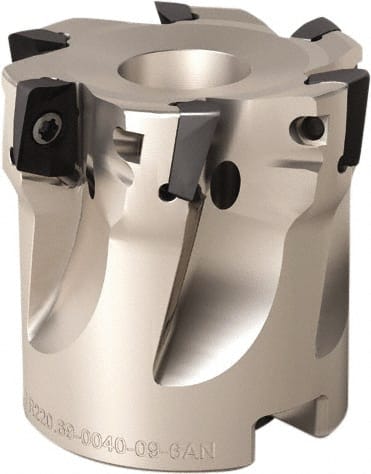

Seco - 4 Inserts, 32mm Cut Diam, 16mm Arbor Diam, 9mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 35mm High, XOMX 10T308TR-M.. Insert Compatibility, Through Coolant, Series Turbo 10
Item #: 81090391
Brand: Seco
Model #: 15517
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Lead Angle | 90 |
| Overall Height (mm) | 35.00 |
| Overall Height (Decimal Inch) | 1.3780 |
| Insert Compatibility | XOMX 10T308TR-M.. |
| Series | Turbo 10 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | R220.69 |
| Number of Flutes | 4 |
| Maximum RPM | 33600 |
| Pitch | Normal |
| Complete Insert Compatibility | XOMX10T308TR-M09; XOMX10T308TR-ME07 |
