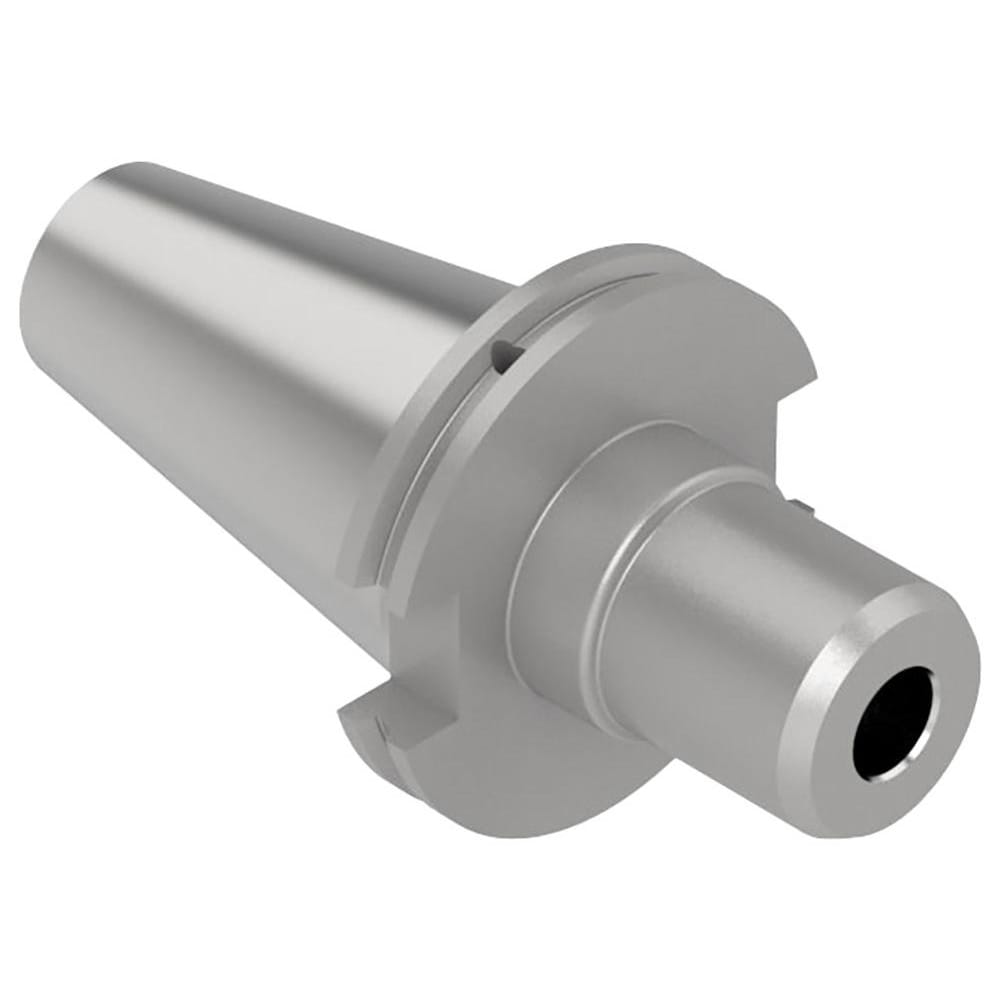

Hydraulic Tool Chuck: CAT50 Taper Shank, 3/4" Hole
Item #: 05454970
Brand: Allied Machine and Engineering
Model #: HYD-CV50I0750
Product Specifications
| Shank Type | Taper |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Decimal Inch) | 2.7500 |
| Shank Diameter (mm) | 69.8500 |
| Shank Diameter (Inch) | 2-3/4 |
| Nose Diameter | 1-9/16 |
| Nose Diameter (Mm) ( - 2 Decimals) | 39.42 |
| Projection (mm) | 81.000 |
| Projection | 3-3/16 |
| Clamping Depth (mm) | 50.50 |
| Clamping Depth (Decimal Inch) | 1.9882 |
| Balanced To Rpm | 25000 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 7.1890 |
| Overall Length (mm) | 182.6000 |
| Hole Diameter (Mm) ( - 0 Decimals) | 19.05 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.5520 |
| Projection (Decimal Inch) | 3.1890 |
| UNSPSC Code | 27112800 |
