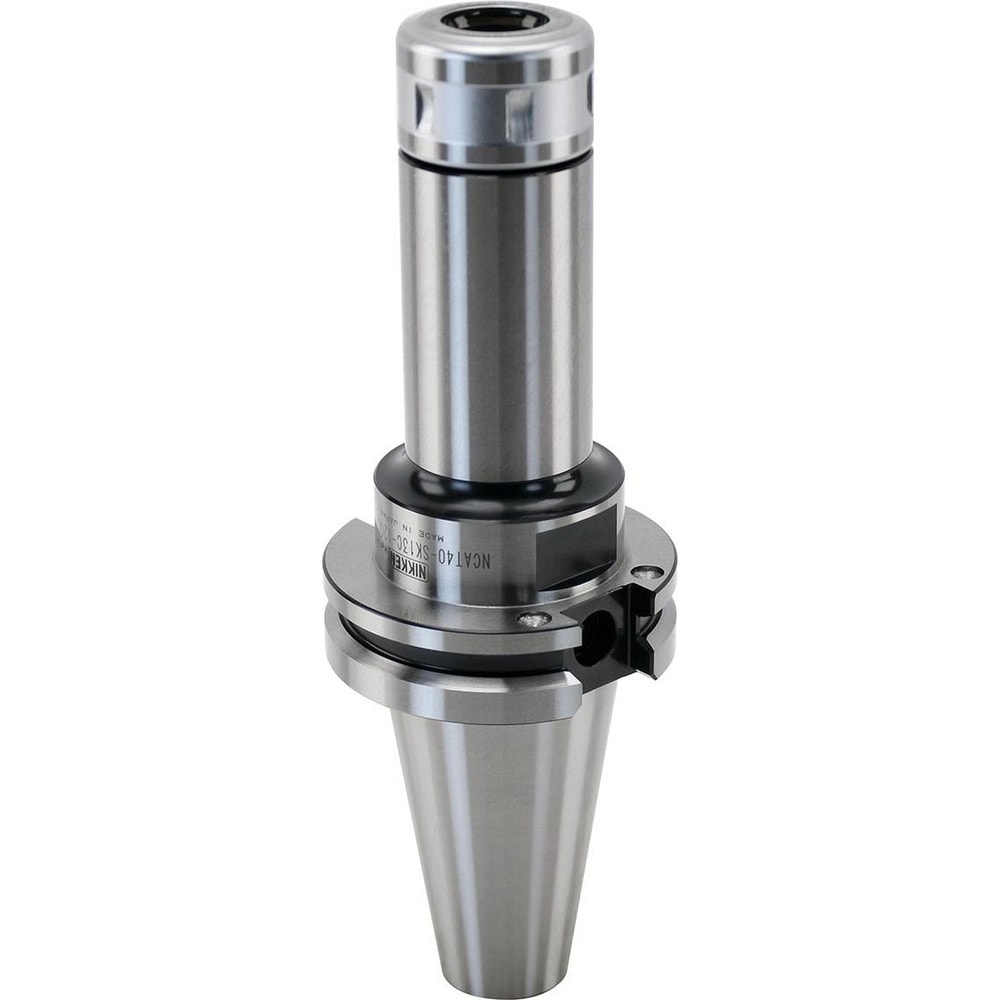

Collet Chuck: 0.1080 to 0.5120" Capacity, Slim Chuck Collet
Item #: 88340286
Brand: Lyndex-Nikken
Model #: NCAT40-SK13C-120U-IDU
Product Specifications
| Collet System | Slim Chuck |
| Collet Series | SK13 |
| Taper Size | NCAT40 |
| Projection (Decimal Inch) | 4.7200 in |
| Minimum Collet Capacity (Decimal Inch) | 0.1080 |
| Maximum Collet Capacity (Decimal Inch) | 0.5120 |
| Overall Length (Decimal Inch) | 4.72 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.3000 |
| UNSPSC Code | 27112808 |
| Thread Size (Inch) | 5/8-11 |
| Country of Origin | Japan |
