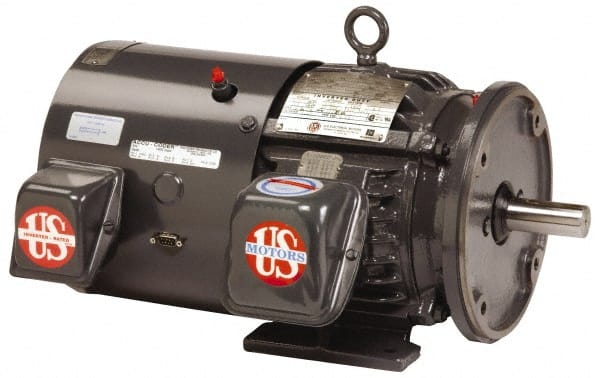

US Motors - 15 hp, TEFC Enclosure, No Thermal Protection, 1,775 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 254 Frame, Rigid Mount, 1 Speed, Ball Bearings, 37/18.4 Full Load Amps, F Class Insulation, Reversible
Item #: 81422479
Brand: US Motors
Model #: B15T2B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 15 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1775 |
| Voltage | 230/460 |
| Frequency Hz | 60 |
| Frame Size | 254 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Definite Purpose |
| Full Load Amperage | 37/18.4 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 24.5000 |
| Full Load Efficiency Rating | 92.4 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
