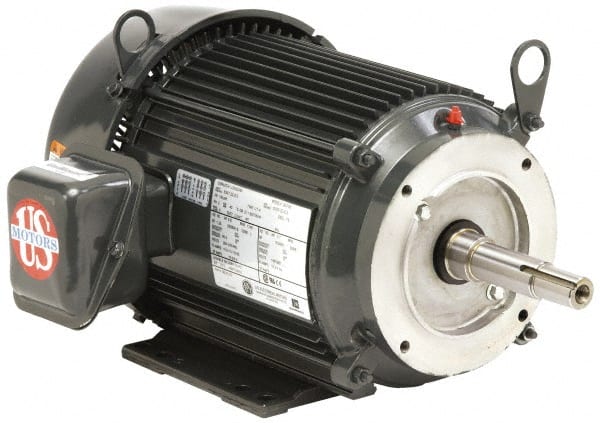

US Motors - 1.5 hp, TEFC Enclosure, No Thermal Protection, 1,725 RPM, 208-230/460 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 56C Frame, C-Face Mount, 1 Speed, Ball Bearings, 4.8-4.8/2.4 Full Load Amps, B Class Insulation, Reversible
Item #: 81423279
Brand: US Motors
Model #: EE931
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Standard Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1725 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 56C |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 4.8-4.8/2.4 |
| Insulation Class | B |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 12.3500 |
| Full Load Efficiency Rating | 87.1 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
