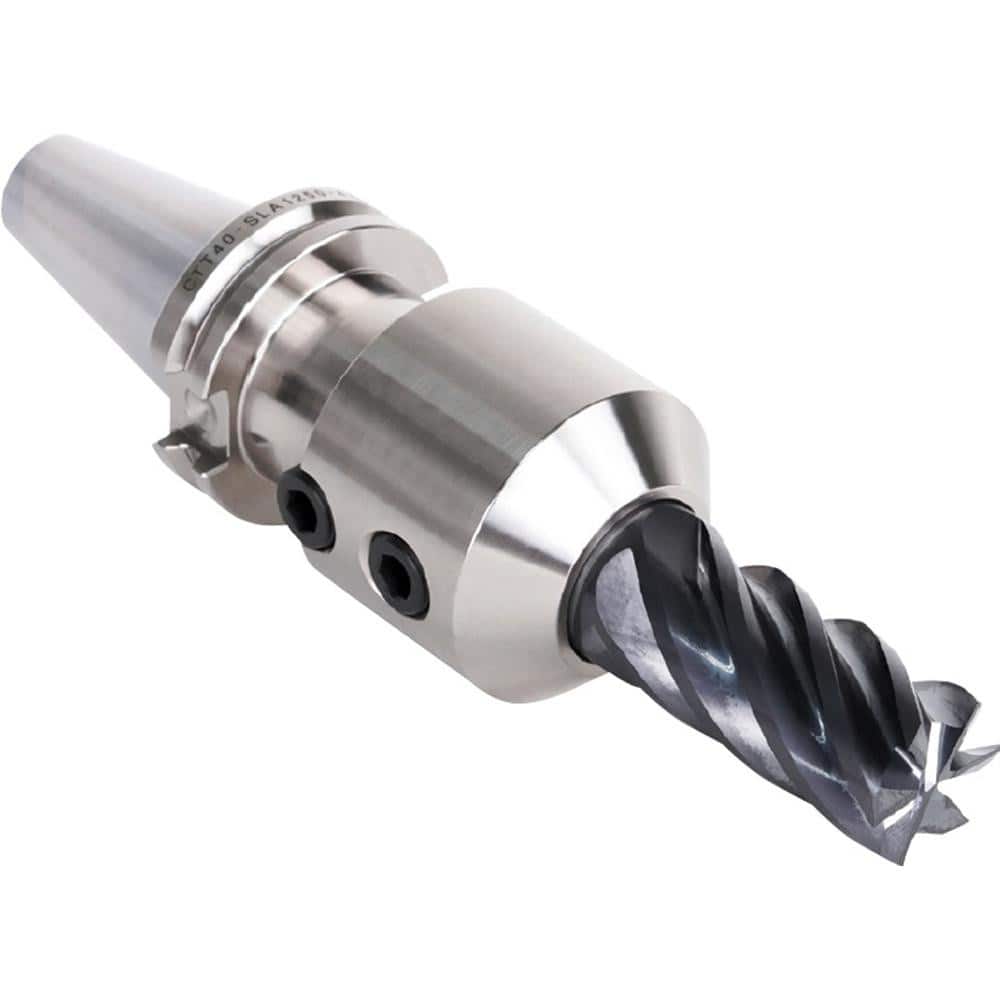

End Mill Holder: CAT40 Dual Contact Taper Shank, 5/16″ Hole 2.5″ Projection, 7/8″ Nose Dia
Item #: 81432106
Brand: Samchully
Model #: CTT40SLA0312250
Product Specifications
| Shank Type | Dual Contact Taper |
| Modular Connection Size | CTT40 |
| Shank Diameter (Decimal Inch) | 0.8750 |
| Shank Diameter (Inch) | 7/8 |
| Overall Length (Decimal Inch) | 5.1900 |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 0.3125 |
| Hole Diameter (Inch) | 5/16 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.8750 |
| Nose Diameter (Inch) | 7/8 |
| Projection (Inch) | 2-1/2 |
| Projection (Decimal Inch - 4 Decimals) | 2.5000 |
