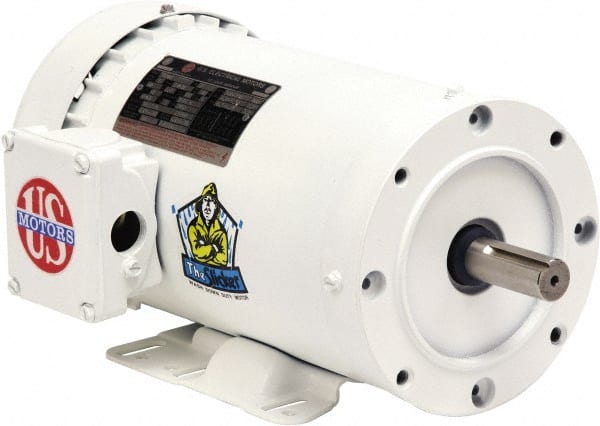

US Motors - 3 hp, TEFC Enclosure, No Thermal Protection, 1765, 1455 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor
Item #: 81505174
Brand: US Motors
Model #: WD3P2D
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 3 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1765, 1455 |
| Voltage | 208-230/460 & 190/380 |
| Frequency Hz | 60/50 |
| Frame Size | 182 |
| Mount Type | Horizontal-Footed |
| Number of Speeds | 1 |
| Bearing Type | Double Sealed Ball Bearings |
| Applications | Food Processing |
| Full Load Amperage | 8.2-7.6/3.8 |
| Insulation Class | F |
| Frame Material | Steel |
| Service Factor Rating | 1.00 |
| PSC Code | 6105 |
