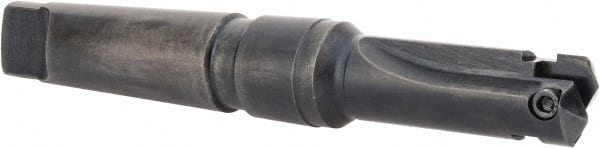

Allied Machine and Engineering - Series A, 31/32 to 1-3/8" Diam, 4MT Taper Shank, Straight Flute Spade Drill - 3" Max Depth, 3-25/32" Body Length, 7-7/8" OAL, Short Length
Item #: 81551160
Brand: Allied Machine and Engineering
Model #: 21411-0004
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | A |
| Minimum Drill Diameter (Inch) | 31/32 |
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Shank Type | Taper Shank |
| Shank Taper Size | 4MT |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 7-7/8 |
| Maximum Drill Depth (Inch) | 3 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 3 |
| Body Length (Inch) | 3-25/32 |
| Shank Length (Inch) | 4-7/8 |
| Through Coolant | No |
