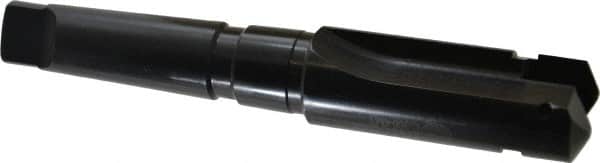

Allied Machine and Engineering - Series C, 1-1/2 to 2-3/8" Diam, 4MT Taper Shank, Straight Flute Spade Drill - 4" Max Depth, 5-1/4" Body Length, 8-7/8" OAL, Short Length
Item #: 81551186
Brand: Allied Machine and Engineering
Model #: 21431-0004
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | C |
| Minimum Drill Diameter (Inch) | 1-1/2 |
| Maximum Drill Diameter (Inch) | 2-3/8 |
| Shank Type | Taper Shank |
| Shank Taper Size | 4MT |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 8-7/8 |
| Maximum Drill Depth (Inch) | 4 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 4 |
| Body Length (Inch) | 5-1/4 |
| Shank Length (Inch) | 4-7/8 |
| Through Coolant | No |
