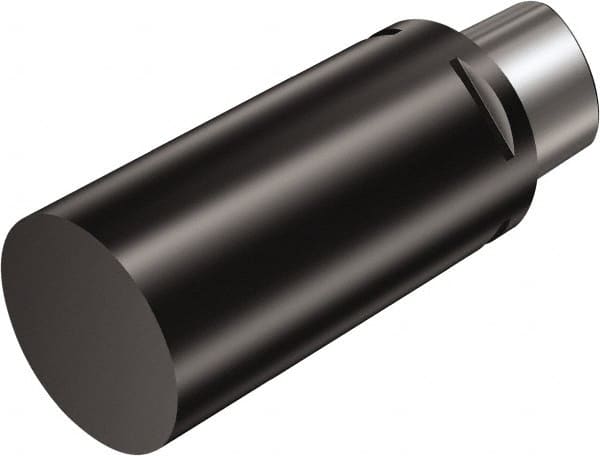

Sandvik Coromant - C4 Modular Connection, 100mm Diameter, Tool Holder Blank - 109mm Overall Length, 65mm Projection Flange to Nose End, 85mm Projection Gage Line to Nose End
Item #: 81650467
Brand: Sandvik Coromant
Model #: 5728187
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | C4 |
| Blank Diameter (mm) | 100.00 |
| Blank Diameter (Decimal Inch) | 3.9370 |
| Projection Gage Line to Nose End (Decimal Inch) | 3.3465 |
| Projection Gage Line to Nose End (mm) | 85.00 |
| Projection Flange to Nose End (mm) | 65.00 |
| Projection Flange to Nose End (Decimal Inch) | 2.5591 |
| Overall Length (mm) | 109.00 |
| Overall Length (Decimal Inch) | 4.2913 |
