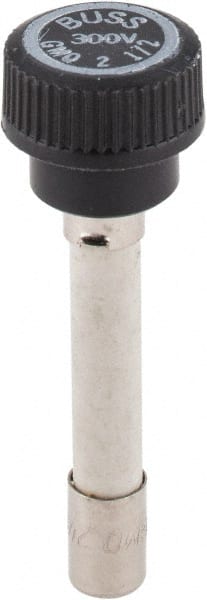

Cooper Bussmann - 300 VAC, 2.5 Amp, Time Delay Size Rejecting/NonRejecting Fuse - Fuse Holder Mount, 2-1/4" OAL, 10 at AC kA Rating, 15.9mm Diam
Item #: 81740052
Brand: Cooper Bussmann
Model #: GMQ-2-1/2
Exact Tooling IR#: 04
Features and Benefits
Size rejecting/non rejecting fuses are designed to prevent fuses from being used with the incorrect size as well as prevent a low interrupting rating from being used in a circuit that needs a higher rating.
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | Size Rejecting/NonRejecting |
| Amperage | 2.50 |
| Voltage | 300 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (Decimal Inch) | 2.2500 |
| Overall Diameter (mm) | 15.90 |
| Material | Ceramic |
| Mounting Type | Fuse Holder |
| Rejection Setting | Rejecting |
| Interrupting Rating (A) | 10000 @ AC |
| Interrupting Rating (kA) | 10 @ AC |
| Standards Met | CSA Class 1422-01 File 53787 Certified; UL Listed Guide JDYX File E19180 |
