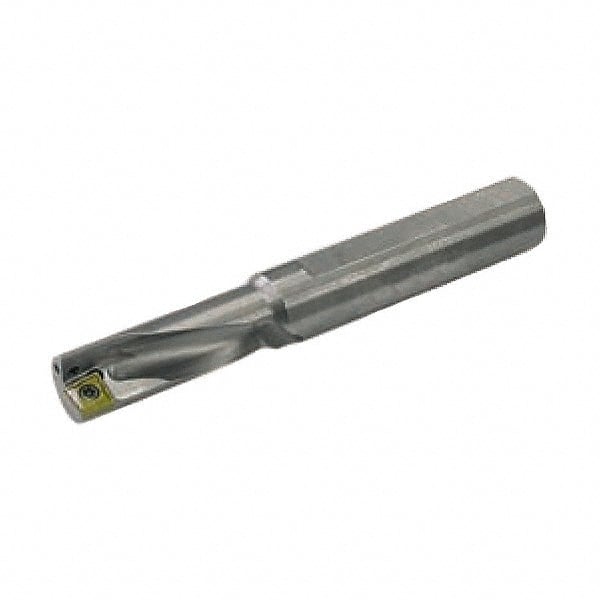

Allied Machine and Engineering - 2.12" Max Drill Depth, 3xD, 16mm Diam, Indexable Insert Drill - 1 Insert, 1" Shank Diam, Straight Shank
Item #: 82101577
Brand: Allied Machine and Engineering
Model #: 11147332
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | EC |
| Drill Diameter (mm) | 16.00 |
| Drill Diameter (Decimal Inch) | 0.6300 |
| Maximum Drill Depth (Decimal Inch) | 2.1200 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Left Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.3540 |
| Number of Drill Inserts | 1 |
| Maximum Drill Diameter (Decimal Inch) | 0.6500 |
| Overall Length/Projection (Decimal Inch) | 5.0500 |
| Insert Compatibility | XCET 09T304FN-27P; XCET 09T304FN-27Q; XCNT 09T304EN; XCNT 09T304EN-M50Q |
| Flute Length (Decimal Inch) | 2.1200 |
| Shank Length (Decimal Inch) | 2.9300 |
| Series | EcoCut Classic |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
