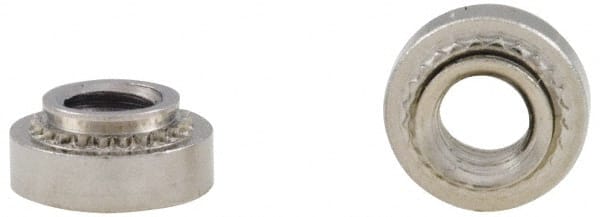

Electro Hardware - #8-32, 0.0909" Min Panel Thickness, Round Head, Clinch Captive Nut - 0.31" Head Diam, 0.213" Mounting Hole Diam, 0.09" Head Height, Passivated Stainless Steel
Item #: 82141078
Brand: Electro Hardware
Model #: ECLS-832-3
Exact Tooling IR#: 04
Features and Benefits
Round heads are dome shaped with flat bearing surfaces. They have a higher head height than pan heads.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Clinch |
| Head Shape | Round |
| System of Measurement | Inch |
| Thread Size | #8-32 |
| Minimum Panel Thickness (Decimal Inch) | 0.0909 |
| Head Diameter (Decimal Inch) | 0.3100 |
| Head Height (Decimal Inch) | 0.0900 |
| Mounting Hole Diameter (Decimal Inch) | 0.2130 |
| Body Diameter (Decimal Inch) | 0.2120 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Finish/Coating | Passivated |
| PEM Part Number Equivalent | CLS-832-3 |
