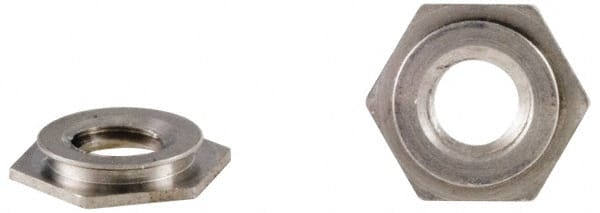

Electro Hardware - 1/4-20, 0.187" Min Panel Thickness, Hex Head, Flush Mount Captive Nut Captive Nut - 0.4375" Head Diam, 0.386" Mounting Hole Diam, 0.029" Head Height, Passivated Stainless Steel
Item #: 82141193
Brand: Electro Hardware
Model #: EF-0420-4
Exact Tooling IR#: 04
Features and Benefits
Hex heads have flat bearing surfaces, sharp corners and six uniform sides. They are used with flat washers and are tightened with wrenches in limited-clearance applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Flush Mount |
| Head Shape | Hex |
| System of Measurement | Inch |
| Thread Size | 1/4-20 |
| Minimum Panel Thickness (Decimal Inch) | 0.1870 |
| Head Diameter (Decimal Inch) | 0.4375 |
| Head Height (Decimal Inch) | 0.0290 |
| Mounting Hole Diameter (Decimal Inch) | 0.3860 |
| Body Diameter (Decimal Inch) | 0.3840 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Finish/Coating | Passivated |
| PEM Part Number Equivalent | F-0420-4 |
