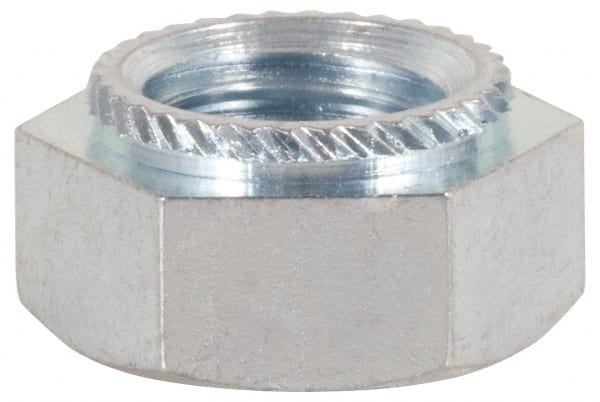

Electro Hardware - M4x0.70, 2mm Min Panel Thickness, Hex Head, Clinch Captive Nut - 7mm Head Diam, 5.5mm Mounting Hole Diam, 2.7mm Head Height, Zinc Plated Steel
Item #: 82141813
Brand: Electro Hardware
Model #: EKF2-M4-2-ZI
Exact Tooling IR#: 04
Features and Benefits
Hex heads have flat bearing surfaces, sharp corners and six uniform sides. They are used with flat washers and are tightened with wrenches in limited-clearance applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Clinch |
| Head Shape | Hex |
| System of Measurement | Metric |
| Thread Size | M4x0.70 |
| Minimum Panel Thickness (mm) | 2.00 |
| Head Diameter (mm) | 7.00 |
| Head Height (mm) | 2.70 |
| Mounting Hole Diameter (mm) | 5.50 |
| Body Diameter (mm) | 5.70 |
| Material | Steel |
| Finish/Coating | Zinc-Plated |
| PEM Part Number Equivalent | KFS2-M4-2-ZI |
