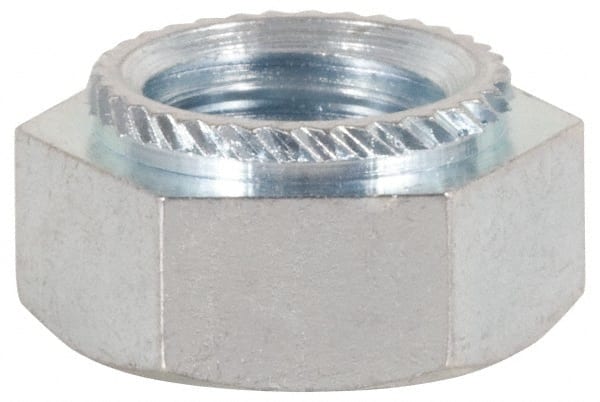

Electro Hardware - M2.5x0.45, 1mm Min Panel Thickness, Hex Head, Clinch Captive Nut - 5.5mm Head Diam, 4.5mm Mounting Hole Diam, 2.1mm Head Height, Passivated Stainless Steel
Item #: 82141896
Brand: Electro Hardware
Model #: EKFS2-M2.5
Exact Tooling IR#: 04
Features and Benefits
Hex heads have flat bearing surfaces, sharp corners and six uniform sides. They are used with flat washers and are tightened with wrenches in limited-clearance applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Clinch |
| Head Shape | Hex |
| System of Measurement | Metric |
| Thread Size | M2.5x0.45 |
| Minimum Panel Thickness (mm) | 1.00 |
| Head Diameter (mm) | 5.50 |
| Head Height (mm) | 2.10 |
| Mounting Hole Diameter (mm) | 4.50 |
| Body Diameter (mm) | 4.70 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Finish/Coating | Passivated |
| PEM Part Number Equivalent | KFS2-M2.5 |
