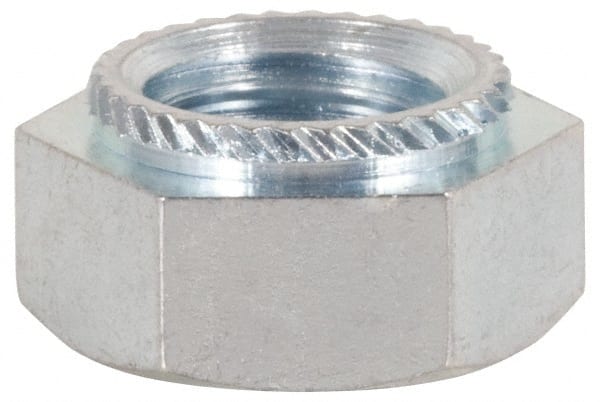

Electro Hardware - M5x0.80, 1mm Min Panel Thickness, Hex Head, Clinch Captive Nut - 8mm Head Diam, 6.5mm Mounting Hole Diam, 3.1mm Head Height, Passivated Stainless Steel
Item #: 82141946
Brand: Electro Hardware
Model #: EKFS2-M5-1
Exact Tooling IR#: 04
Features and Benefits
Hex heads have flat bearing surfaces, sharp corners and six uniform sides. They are used with flat washers and are tightened with wrenches in limited-clearance applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Clinch |
| Head Shape | Hex |
| System of Measurement | Metric |
| Thread Size | M5x0.80 |
| Minimum Panel Thickness (mm) | 1.00 |
| Head Diameter (mm) | 8.00 |
| Head Height (mm) | 3.10 |
| Mounting Hole Diameter (mm) | 6.50 |
| Body Diameter (mm) | 6.75 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Finish/Coating | Passivated |
| PEM Part Number Equivalent | KFS2-M5-1 |
