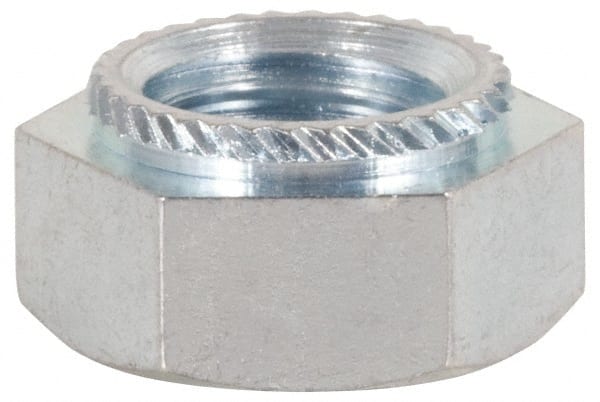

Electro Hardware - M6x1.00, 2mm Min Panel Thickness, Hex Head, Clinch Captive Nut - 10mm Head Diam, 8mm Mounting Hole Diam, 3.2mm Head Height, Passivated Stainless Steel
Item #: 82141979
Brand: Electro Hardware
Model #: EKFS2-M6-2
Exact Tooling IR#: 04
Features and Benefits
Hex heads have flat bearing surfaces, sharp corners and six uniform sides. They are used with flat washers and are tightened with wrenches in limited-clearance applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Clinch |
| Head Shape | Hex |
| System of Measurement | Metric |
| Thread Size | M6x1.00 |
| Minimum Panel Thickness (mm) | 2.00 |
| Head Diameter (mm) | 10.00 |
| Head Height (mm) | 3.20 |
| Mounting Hole Diameter (mm) | 8.00 |
| Body Diameter (mm) | 8.25 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Finish/Coating | Passivated |
| PEM Part Number Equivalent | KFS2-M6x1-2 |
