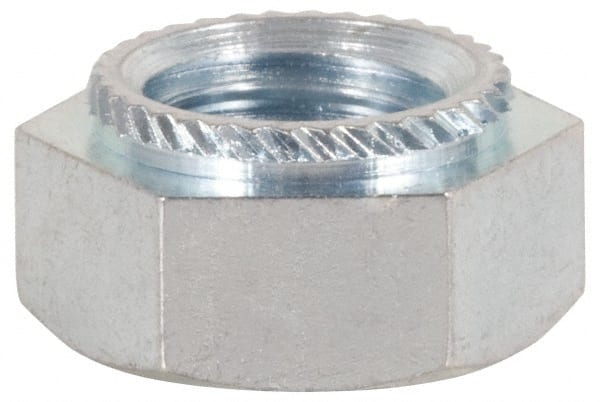

Electro Hardware - M8x1.25, 2mm Min Panel Thickness, Hex Head, Clinch Captive Nut - 13mm Head Diam, 10mm Mounting Hole Diam, 4.7mm Head Height, Passivated Stainless Steel
Item #: 82141987
Brand: Electro Hardware
Model #: EKFS2-M8-1.25
Exact Tooling IR#: 04
Features and Benefits
Hex heads have flat bearing surfaces, sharp corners and six uniform sides. They are used with flat washers and are tightened with wrenches in limited-clearance applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Clinch |
| Head Shape | Hex |
| System of Measurement | Metric |
| Thread Size | M8x1.25 |
| Minimum Panel Thickness (mm) | 2.00 |
| Head Diameter (mm) | 13.00 |
| Head Height (mm) | 4.70 |
| Mounting Hole Diameter (mm) | 10.00 |
| Body Diameter (mm) | 10.30 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Finish/Coating | Passivated |
| PEM Part Number Equivalent | KFS2-M8x1.25 |
