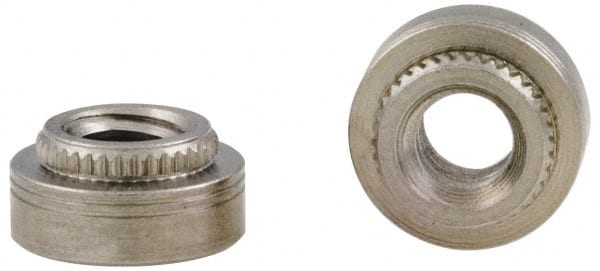

Electro Hardware - #10-32, 0.0599" Min Panel Thickness, Round Head, Broach Captive Nut - 0.375" Head Diam, 0.272" Mounting Hole Diam, 0.127" Head Height, Passivated Stainless Steel
Item #: 82142118
Brand: Electro Hardware
Model #: EKFS2-032
Exact Tooling IR#: 04
Features and Benefits
Round heads are dome shaped with flat bearing surfaces. They have a higher head height than pan heads.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Broach |
| Head Shape | Round |
| System of Measurement | Inch |
| Thread Size | #10-32 |
| Minimum Panel Thickness (Decimal Inch) | 0.0599 |
| Head Diameter (Decimal Inch) | 0.3750 |
| Head Height (Decimal Inch) | 0.1270 |
| Mounting Hole Diameter (Decimal Inch) | 0.2720 |
| Body Diameter (Decimal Inch) | 0.2900 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Finish/Coating | Passivated |
| PEM Part Number Equivalent | KFS2-032 |
