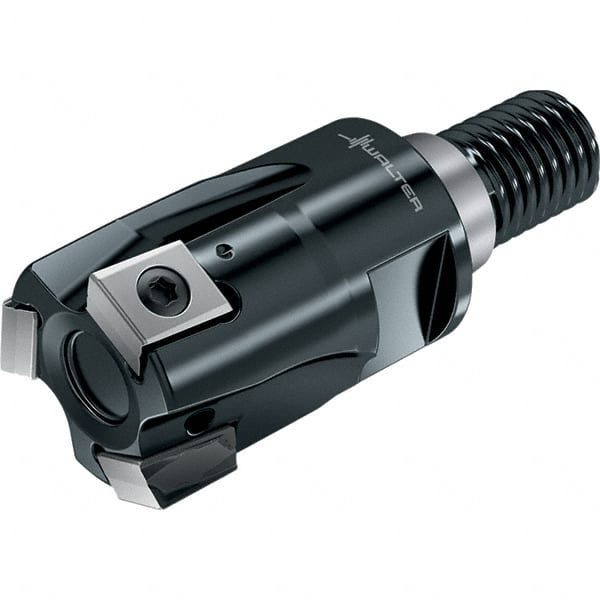

Walter - 2" Cut Diam, 0.48" Max Depth of Cut, Indexable Square Shoulder End Mill - Multiple Insert Styles, T45 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 82206129
Brand: Walter
Model #: 6197406
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Modular Connection |
| Modular Connection Size | T45 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.4800 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F5141 |
| Number of Flutes | 5 |
| Head Length (Decimal Inch) | 1.5750 |
| Insert Compatibility | LNHU 130608R-L55T; LNHU 130608R-L85T; LNHU 130612R-L55T; LNHU 130616R-L55T; LNHU 130620R-L55T; LNHU 130625R-L55T; LNHU 130630R-L55T; LNHU 130632R-L55T |
| Shank Length (Decimal Inch) | 1.3780 |
| Shank Length (mm) | 35.00 |
