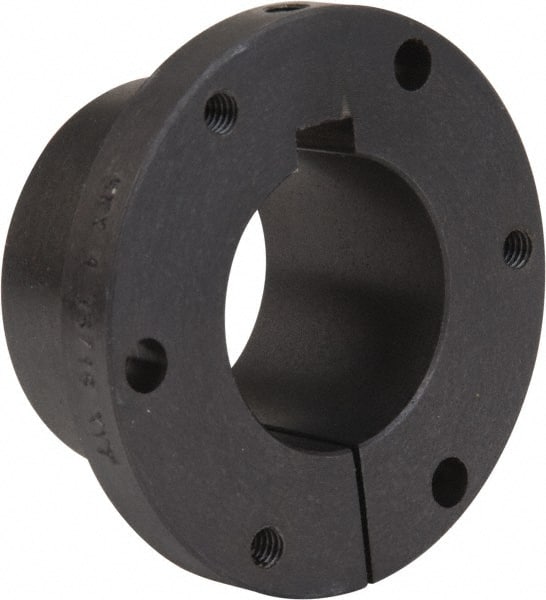

TB Wood's - 20" Bore, No. 10 Thread, 6" Wide Keyway, 6" Deep Keyway, JA Sprocket Bushing - 1-3/8 to 2" Outside Diam
Item #: 82224783
Brand: TB Wood's
Model #: JA20MM
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | JA |
| Bore Size (mm) | 20.00 |
| Keyway Depth (mm) | 6.0 |
| Keyway Width (mm) | 6.000 |
| Maximum Outside Diameter (Decimal Inch) | 2.0000 |
| Minimum Outside Diameter (Decimal Inch) | 1.3750 |
| Thread Size | #10 |
| Torque (In/Lb) | 1750.00 |
| PSC Code | 3020 |
