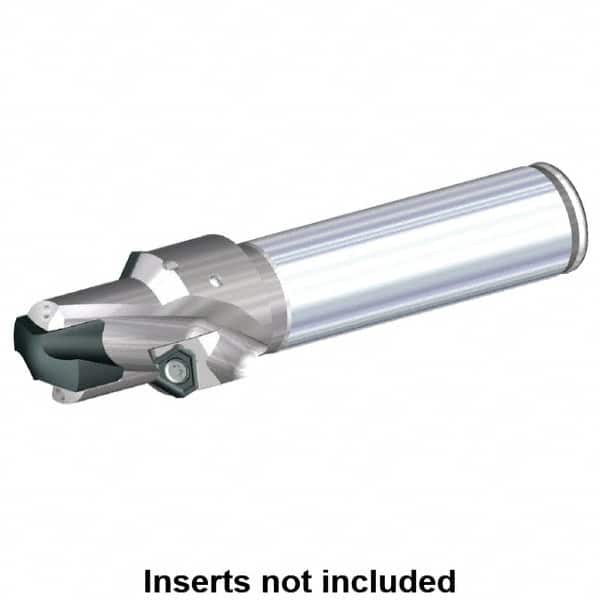

Kennametal - 18.26 to 20mm Diam, 1xD, 19.84mm Max Depth, 3/4" Shank Diam, 95.25mm OAL, Replaceable Tip Drill - KSEM0719, TPGX 1102ZPR Insert, 2 Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 82380619
Brand: Kennametal
Model #: 2224002
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 18.26 |
| Minimum Drill Diameter (Decimal Inch) | 0.7190 |
| Maximum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7873 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.7811 |
| Maximum Drill Depth (mm) | 19.84 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0719; TPGX 1102ZPR |
| Insert Seat Size | 2 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.51 |
| Coolant Hole Diameter (Decimal Inch) | 0.1380 |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank Type | Straight Shank |
| Tip Length (mm) | 2.86 |
| Tip Length (Decimal Inch) | 0.1125 |
| Overall Length (mm) | 95.25 |
| Overall Length (Decimal Inch) | 3.7500 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
