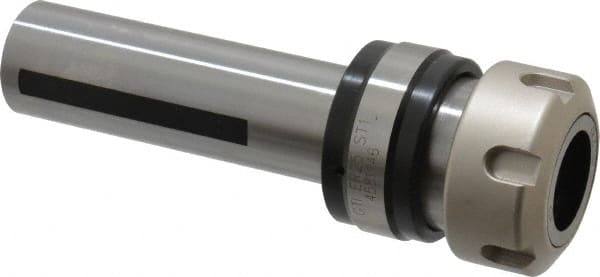

ETM - 1" Straight Shank Diam Tapping Chuck/Holder - #10 to 5/8" Tap Capacity, 2.087" Projection
Item #: 82398751
Brand: ETM
Model #: 4539027
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Minimum Tap Capacity (Inch) | #10 |
| Maximum Tap Capacity (Inch) | 5/8 |
| Projection (Decimal Inch) | 2.0870 |
| Quick Change | No |
| Minimum Collet Capacity (Decimal Inch) | 0.0410 |
| Minimum Collet Capacity (Inch) | #10 |
| Maximum Collet Capacity (Inch) | 5/8 |
| Maximum Collet Capacity (Decimal Inch) | 0.6250 |
| Collet System | ER Tap |
| Collet Series | ER25 |
| Nose Diameter (Decimal Inch) | 1.6540 |
| Overall Length (Decimal Inch) | 5.3270 |
| Through Coolant | No |
