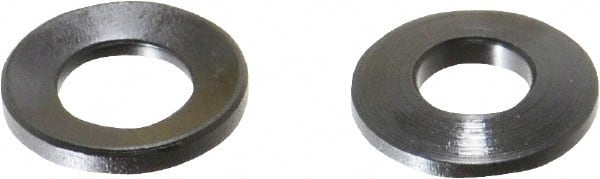

Jergens - 3/8" Bolt, Black Oxide, Steel, Spherical Washer Assembly - 15/32" Female, 13/32" Male Inside x 7/8" OD, 7/32" Thick, 1-1/2" Radius
Item #: 82429341
Brand: Jergens
Model #: 41104
Exact Tooling IR#: 04
Features and Benefits
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Bolt Size (Inch) | 3/8 |
| Bolt Size (mm) | 9.53 |
| System of Measurement | Metric |
| Female Inside Diameter (Inch) | 15/32 |
| Female Inside Diameter (mm) | 11.91 |
| Female Outside Diameter (Inch) | 7/8 |
| Female Outside Diameter (mm) | 22.23 |
| Male Inside Diameter (Inch) | 13/32 |
| Male Inside Diameter (mm) | 10.32 |
| Male Outside Diameter (Inch) | 7/8 |
| Male Outside Diameter (mm) | 22.23 |
| Thickness (Inch) | 7/32 |
| Thickness (mm) | 5.56 |
| Radius (Inch) | 1-1/2 |
| Radius (mm) | 38.10 |
| Material | Steel |
| Finish/Coating | Black Oxide |
| Chamfer (Inch) | 15/32 |
