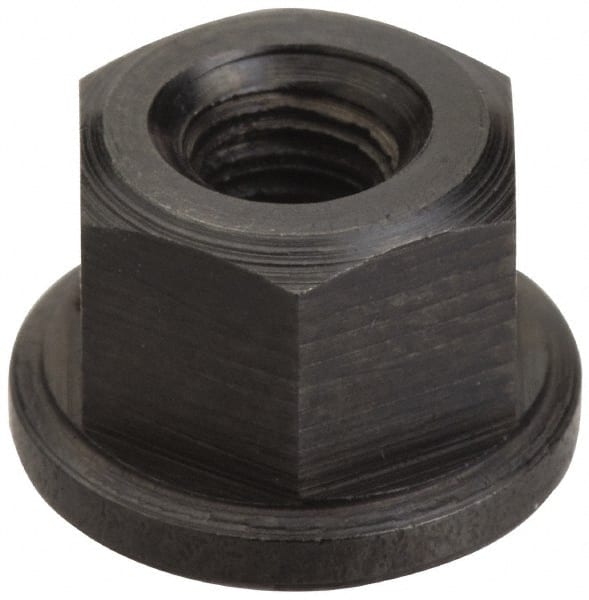

Jergens - 1/4" Bolt, Steel, Bottom Washer - 19/64" Female Inside x 5/8" Female Outside Diameter, 1" Radius, 1/2" Nut Screw, 5/8" Nut Flange Diam
Item #: 82429515
Brand: Jergens
Model #: 41302
Exact Tooling IR#: 04
Features and Benefits
Bottom washers are concave and fit with the convex shape of top washers.
| Product Specifications | |
|---|---|
| Type | Bottom Washer |
| Bolt Size (Inch) | 1/4 |
| System of Measurement | Inch |
| Female Inside Diameter (Inch) | 19/64 |
| Female Outside Diameter (Inch) | 5/8 |
| Radius (Inch) | 1 |
| Material | Steel |
| Finish/Coating | Black Oxide |
| Nut Screw Size (Inch) | 1/2 |
| Nut Hex Width (Inch) | 1/2 |
| Nut Height (Inch) | 1/4 |
| Nut Flange Diameter (Inch) | 5/8 |
| Nut Flange Thickness (Inch) | 3/32 |
