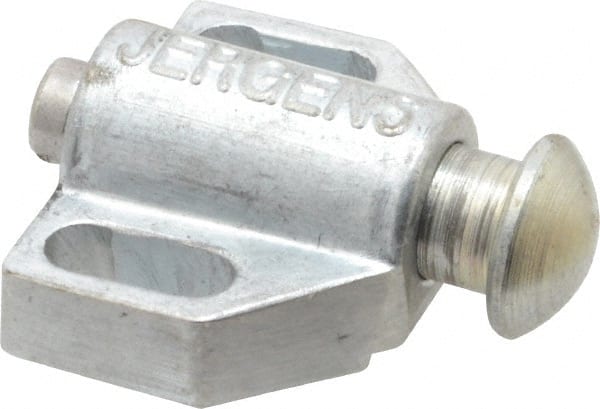

Jergens - 15/16" Base Width, 1/8" Stroke Len, 3/8" Stop Head OD, 21/32" Btw Mt Hole Ctrs, 19/32" Btw Mt Hole & Edge, Round Spring Locating Stop
Item #: 82436015
Brand: Jergens
Model #: 36101
Product Specifications
| Stop Head Outside Diameter (Inch) | 3/8 |
| Stop Head Outside Diameter (Decimal Inch) | 0.3750 |
| Stroke Length (Decimal Inch) | 0.1250 |
| Stroke Length (Inch) | 1/8 |
| Base Width (Inch) | 15/16 |
| Body Length (Inch) | 11/16 |
| Body Length (Decimal Inch) | 0.6875 |
| Overall Height (Inch) | 13/32 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.6563 |
| Distance Between Mount Hole Centers (Inch) | 21/32 |
| Distance Between Mount Hole & Edge (Inch) | 19/32 |
| Distance Between Mount Hole & Edge (Decimal Inch) | 0.5938 |
| Middle End Force (Lb.) | 10.00 |
| Middle End Force (kg) | 4.54 |
| Flat Button Inside Diameter (Inch) | 13/32 |
| Body Width (Inch) | 15/16 |
| Body Width (Decimal Inch) | 0.9375 |
| Mounting Slot Length (Decimal Inch) | 0.3500 |
| Mounting Slot Width (Decimal Inch) | 0.1400 |
| Base Thickness (Inch) | 7/32 |
| Base Thickness (Decimal Inch) | 0.2188 |
| Body Material | Zinc Aluminum Alloy |
| Stop Material | Steel |
