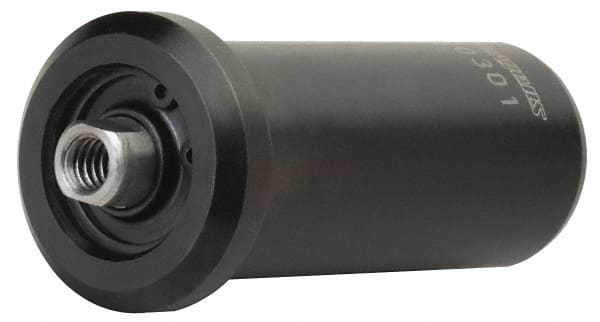

25 to 3000 psi, 1″ Stroke Length, 1.22″ Volume, Air & Oil Operation, Single-Acting Smooth Body Clamp Cylinder 3660 Lb Max Output, 1.22″ Effective Piston Area, 1-47/64″ OD, 1.5″ Shaft Diam
Item #: 82510330
Brand: Jergens
Model #: 60307
Product Specifications
| Action Type | Single-Acting |
| Operating Stroke Length (Inch) | 1 |
| Operating Volume (Cu. In.) | 1.22 |
| Operation Type | Air/Oil |
| Effective Piston Area (Sq. In.) | 1.22 |
| Maximum Operating Pressure (psi) | 3000.00 |
| Minimum Operating Pressure (psi) | 25.00 |
| Maximum Output Force (Lb.) | 3660.00 |
| Base To Shaft End (Inch) | 2-3/8 |
| Body Length (Inch) | 2-5/8 |
| Outside Diameter (Inch) | 1-47/64 |
| Shaft Diameter (Decimal Inch) | 1.5000 |
| Projection Diameter (Inch) | 1/2 |
| End Port Size | 3/8-16 |
| End Port Thread Depth (Inch) | 3/4 |
