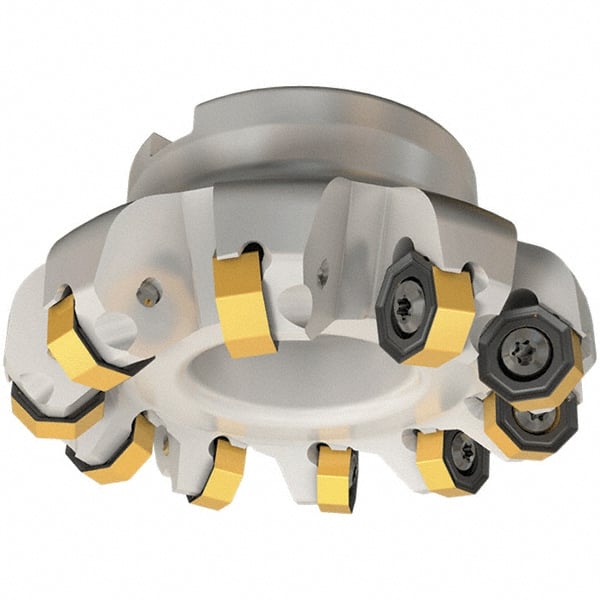

Iscar - 6" Cut Diam, 2" Arbor Hole, 0.138" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 12 Inserts, ONHU 0505\xB6OXMT 0507\xB6S845 SN.U 1305 Insert, Right Hand Cut, 12 Flutes, Series Helido
Item #: 82515164
Brand: Iscar
Model #: 3196820
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | ONHU 0505; OXMT 0507; S845 SN.U 1305 |
| Series | Helido |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | SOF45 |
| Number of Flutes | 12 |
| Hub Diameter (Decimal Inch) | 3.9400 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.2050 |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | ONHU 050500-N-HP; ONHU 050500-PL; ONHU 050500-R-HP; ONHU 050505-TN; ONHU 050505-TN-MM; ONHU 0505AN-8R-W; ONHU 0505AN-N-W; ONHU 0505AN-R-W; OXMT 050705-R-HP; OXMT 0507R08-FF; S845 SNHU 1305AN-N-W; S845 SNHU 1305ANR-MM; S845 SNHU 1305ANR-PL; S845 SNHU 1305A |
