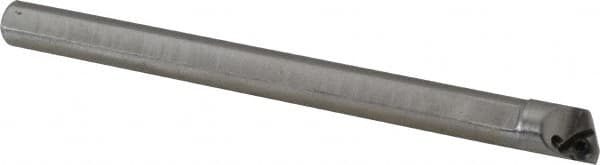

Hertel - 0.347" Min Bore Diam, 4" OAL, 5/16" Shank Diam, HBBG Indexable Boring Bar - 1-1/4" Max Bore Depth, WPGT Insert, Screw Holding Method
Item #: 82553520
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | HBBG |
| Minimum Bore Diameter (Decimal Inch) | 0.3470 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 4 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Insert Compatibility | WPGT |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
