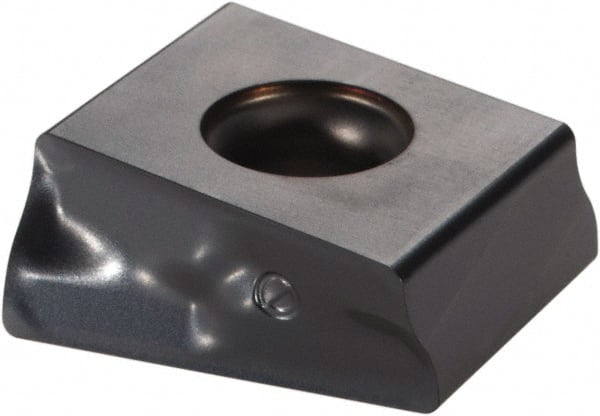

DPM434L050 IN2005 Carbide Milling Insert TiAlN Finish, 0.551″ Long x 0.3″ Thick
Item #: 82589367
Brand: Ingersoll Cutting Tools
Model #: 5812146
Product Specifications
| Insert Style | DPM |
| Insert Size Code | 34 |
| Insert Size | 434 |
| Insert Material | Solid Carbide |
| Material Grade | C2 |
| Manufacturer Grade | IN2005 |
| Inscribed Circle (Decimal Inch) | 0.7090 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Left Hand |
| Relief Angle | 11.00 |
| Series | DPM324- |
| Coating Process | PVD |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| Iso Code | DPM434L050 IN2005 |
| Standards | ISO |
| Shape | Diamond |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 0.6580 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3000 |
| Length (Decimal Inch - 4 Decimals) | 0.5510 |
