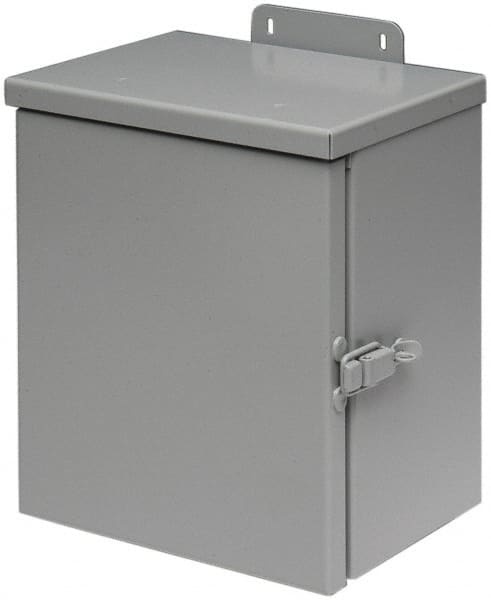

Cooper B-Line - Steel Junction Box Enclosure Hinge Flat Cover - NEMA 3R, 12" Wide x 12" High x 6" Deep, Rainproof
Item #: 82608910
Brand: Cooper B-Line
Model #: 12126 RHC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Junction Box Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 3R |
| Overall Width (Inch) | 12 |
| Overall Width (Decimal Inch) | 12 |
| Overall Height (Inch) | 12 |
| Overall Height (Decimal Inch) | 12 |
| Overall Depth (Inch) | 6 |
| Overall Depth (Decimal Inch) | 6 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 16 |
| Resistance Features | Rainproof |
| Includes | #10-32 Weldnuts; Continuous Hinge; External Mounting Feet; Knockouts; Padlock Draw Pull Catch; Stainless Steel Pin |
| Standards Met | ANSI 61; CSA C22.2 No. 40 Certified; UL Listed 50 |
| Overall Width (mm) | 305 |
| Overall Height (mm) | 305 |
| Overall Depth (mm) | 152 |
