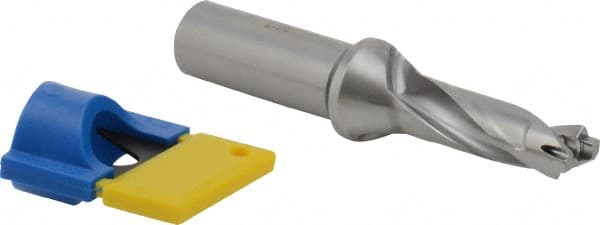

Iscar - 0.591" to 5/8" Diam, 3xD, 1.77" Max Depth, 3/4" Shank Diam, 4.68" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 82629627 Toolholder, Series SumoCham
Item #: 82629627
Brand: Iscar
Model #: 3202801
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.5910 |
| Maximum Drill Diameter (Decimal Inch) | 0.6260 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.7700 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 2.7100 |
| Overall Length (Decimal Inch) | 4.6800 |
| Shank Length (Decimal Inch) | 1.9700 |
