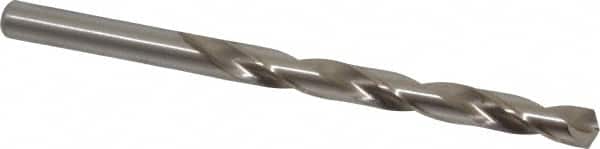

Cleveland - Letter K 135° High Speed Steel Jobber Drill - Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-1/4" OAL, Split Point
Item #: 82649625
Brand: Cleveland
Model #: C11639
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Letter) | K |
| Drill Bit Size (Decimal Inch) | 0.2810 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2-7/8 |
| Flute Length (mm) | 38.10 |
| Flute Length (Decimal Inch) | 1.5000 |
| Overall Length (mm) | 107.95 |
| Overall Length (Decimal Inch) | 4.2500 |
| Overall Length (Inch) | 4-1/4 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.2810 |
| Spiral Type | Regular Spiral |
| Specification Designation | NAS |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0010 to 0.0000 |
| Web Thinning | Web-Thinned |
| Specification Number | NAS 907 |
| Drill Bit Grade | Heavy-Duty |
| Series/List | 2222 |
