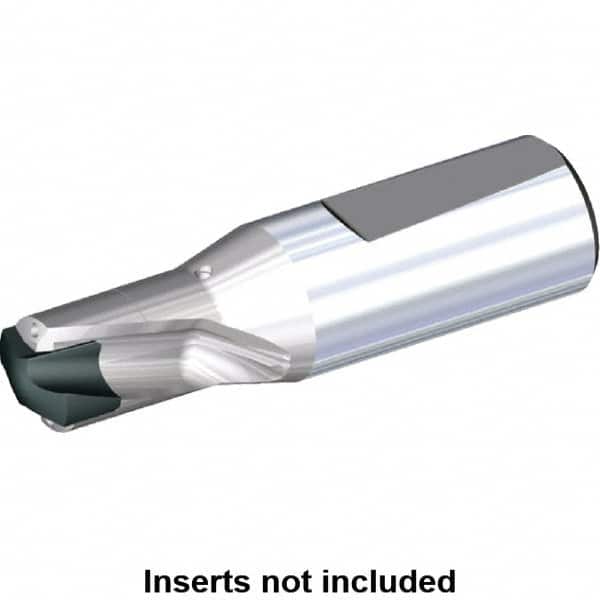

Kennametal - 16 to 18mm Diam, 1xD, 18mm Max Depth, 20mm Shank Diam, 33mm Flute, 88mm OAL, Replaceable Tip Drill - KSEM1600 Insert, 1 Seat Size, Series KSEM
Item #: 82698358
Brand: Kennametal
Model #: 1592413
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7087 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.7087 |
| Maximum Drill Depth (mm) | 18.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | KSEM1600 |
| Insert Seat Size | 1 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 2.50 |
| Flute Length (mm) | 33.00 |
| Flute Length (Decimal Inch) | 1.2992 |
| Overall Length (mm) | 88.00 |
| Shank Length (mm) | 50.00 |
