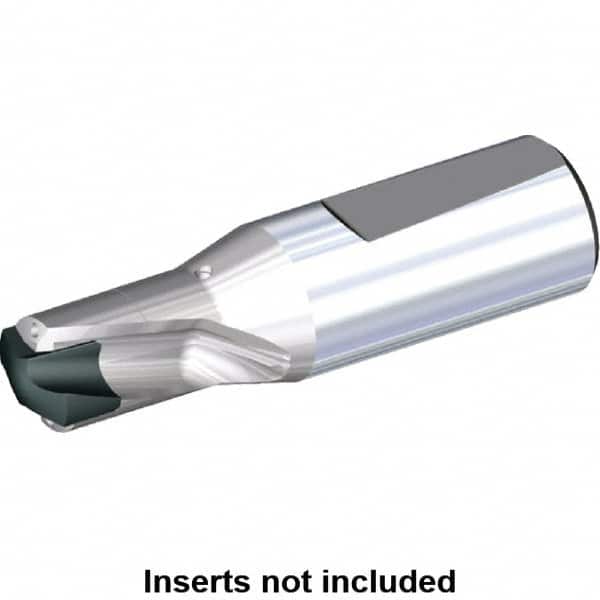

Kennametal - 18.01 to 20mm Diam, 1xD, 20mm Max Depth, 63/64" Shank Diam, 38mm Flute, 99mm OAL, Replaceable Tip Drill - KSEM1801 Insert, 2 Seat Size, Series KSEM
Item #: 82698366
Brand: Kennametal
Model #: 1592414
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 18.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.7091 |
| Maximum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7874 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.7874 |
| Maximum Drill Depth (mm) | 20.00 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Insert Style | KSEM1801 |
| Insert Seat Size | 2 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 2.90 |
| Flute Length (mm) | 38.00 |
| Flute Length (Decimal Inch) | 1.4961 |
| Overall Length (mm) | 99.00 |
| Shank Length (mm) | 56.00 |
