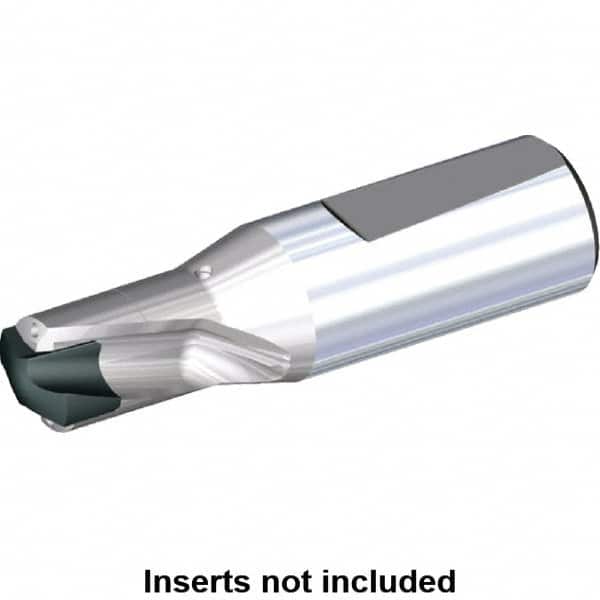

Kennametal - 24.01 to 26mm Diam, 1xD, 26mm Max Depth, 32mm Shank Diam, 50mm Flute, 115mm OAL, Replaceable Tip Drill - KSEM2401GDM Insert, 5 Seat Size, Series KSEM
Item #: 82698390
Brand: Kennametal
Model #: 1592418
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 24.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.9453 |
| Maximum Drill Diameter (mm) | 26.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.0236 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.0236 |
| Maximum Drill Depth (mm) | 26.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | KSEM2401GDM |
| Insert Seat Size | 5 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 3.80 |
| Flute Length (mm) | 50.00 |
| Flute Length (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 115.00 |
| Shank Length (mm) | 60.00 |
