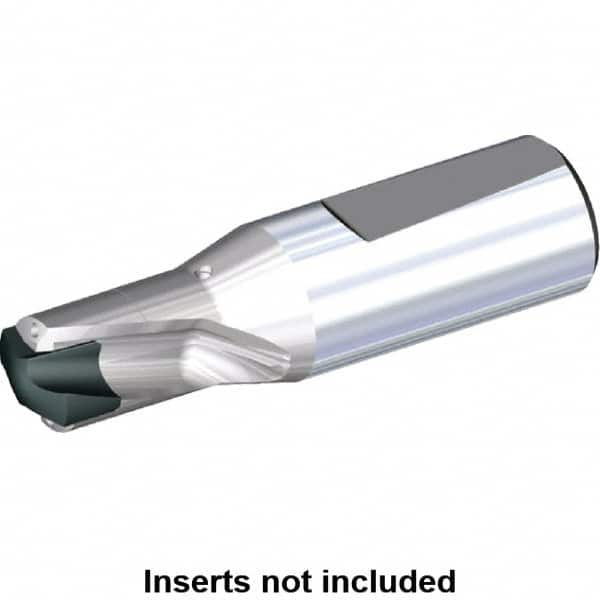

Kennametal - 26.01 to 28mm Diam, 1xD, 28mm Max Depth, 32mm Shank Diam, 54mm Flute, 119mm OAL, Replaceable Tip Drill - KSEM2601GDM Insert, 6 Seat Size, Series KSEM
Item #: 82698408
Brand: Kennametal
Model #: 1592419
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 26.01 |
| Minimum Drill Diameter (Decimal Inch) | 1.0240 |
| Maximum Drill Diameter (mm) | 28.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.1024 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (mm) | 28.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Insert Style | KSEM2601GDM |
| Insert Seat Size | 6 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 4.00 |
| Flute Length (mm) | 54.00 |
| Flute Length (Decimal Inch) | 2.1260 |
| Overall Length (mm) | 119.00 |
| Shank Length (mm) | 60.00 |
