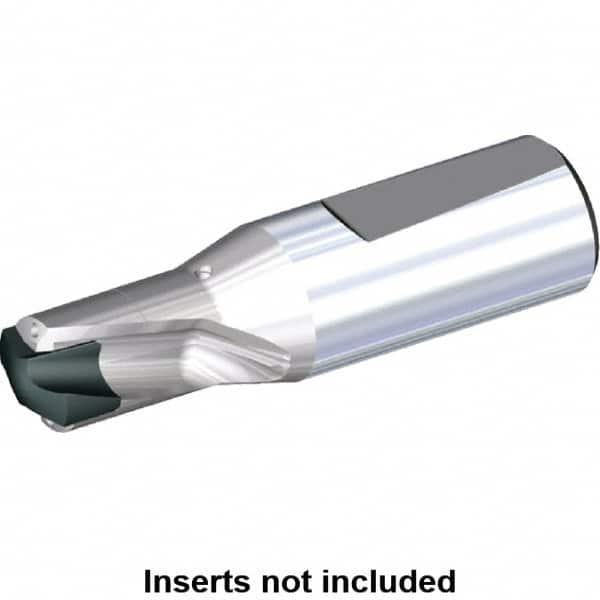

Kennametal - 30.01 to 32mm Diam, 1xD, 32mm Max Depth, 32mm Shank Diam, 62mm Flute, 127mm OAL, Replaceable Tip Drill - KSEM3001GDM Insert, 8 Seat Size, Series KSEM
Item #: 82698424
Brand: Kennametal
Model #: 1592461
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 30.01 |
| Minimum Drill Diameter (Decimal Inch) | 1.1815 |
| Maximum Drill Diameter (mm) | 32.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.2598 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.2598 |
| Maximum Drill Depth (mm) | 32.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | KSEM3001GDM |
| Insert Seat Size | 8 |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 4.60 |
| Flute Length (mm) | 62.00 |
| Flute Length (Decimal Inch) | 2.4409 |
| Overall Length (mm) | 127.00 |
| Shank Length (mm) | 60.00 |
