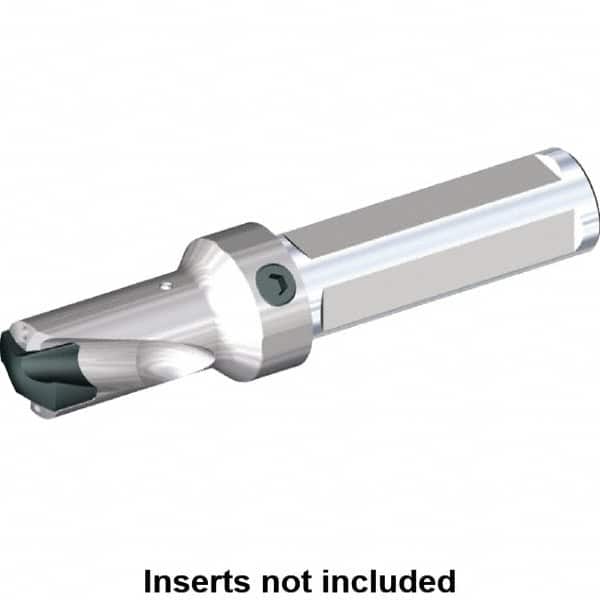

Kennametal - 18.01 to 20mm Diam, 1xD, 19.81mm Max Depth, 3/4" Shank Diam, 35.03mm Flute, 107.95mm OAL, Replaceable Tip Drill - KSEM0719 Insert, 2 Seat Size, Series KSEM
Item #: 82698465
Brand: Kennametal
Model #: 1792225
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KSEM |
| Minimum Drill Diameter (mm) | 18.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.7091 |
| Maximum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7874 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.7800 |
| Maximum Drill Depth (mm) | 19.81 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | KSEM0719 |
| Insert Seat Size | 2 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.1100 |
| Flute Length (mm) | 35.03 |
| Flute Length (Decimal Inch) | 1.3791 |
| Body Length (Decimal Inch) | 2.2500 |
| Overall Length (mm) | 107.95 |
| Overall Length (Decimal Inch) | 4.2500 |
| Shank Length (Decimal Inch) | 2.0000 |
